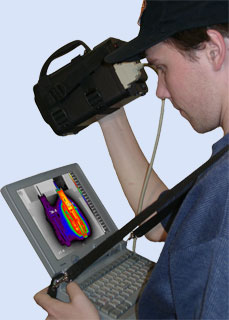

Thermograph Irtis-2000 C- technical characteristics
| IR-detector |
InSb (HgCdTe) |
| Spectral response |
3-5 (8-12) microns |
| Sensitivity at 30°С |
0,05° C (0.02° С) |
| Measuring temperature range |
-60°С - +300°С (+1700°С) |
| Temperature measurement accuracy |
±1% or ±1°С |
| Response of operating temperature range |
-20°С - +50°С |
| Spatial resolution |
less 2 mrad |
| Field of view |
25X20 degrees |
| Frame resolution |
320 (640) X240 (480) |
| Frame formation time |
1,5 (0,6) sec. |
| Autonomous working time |
more 8 hours |
| Power consumption |
1,2 W (6 W) |
| Dimensions |
92 х 120 х 200 |
| Weight |
1,4 kg |
|
|
|
